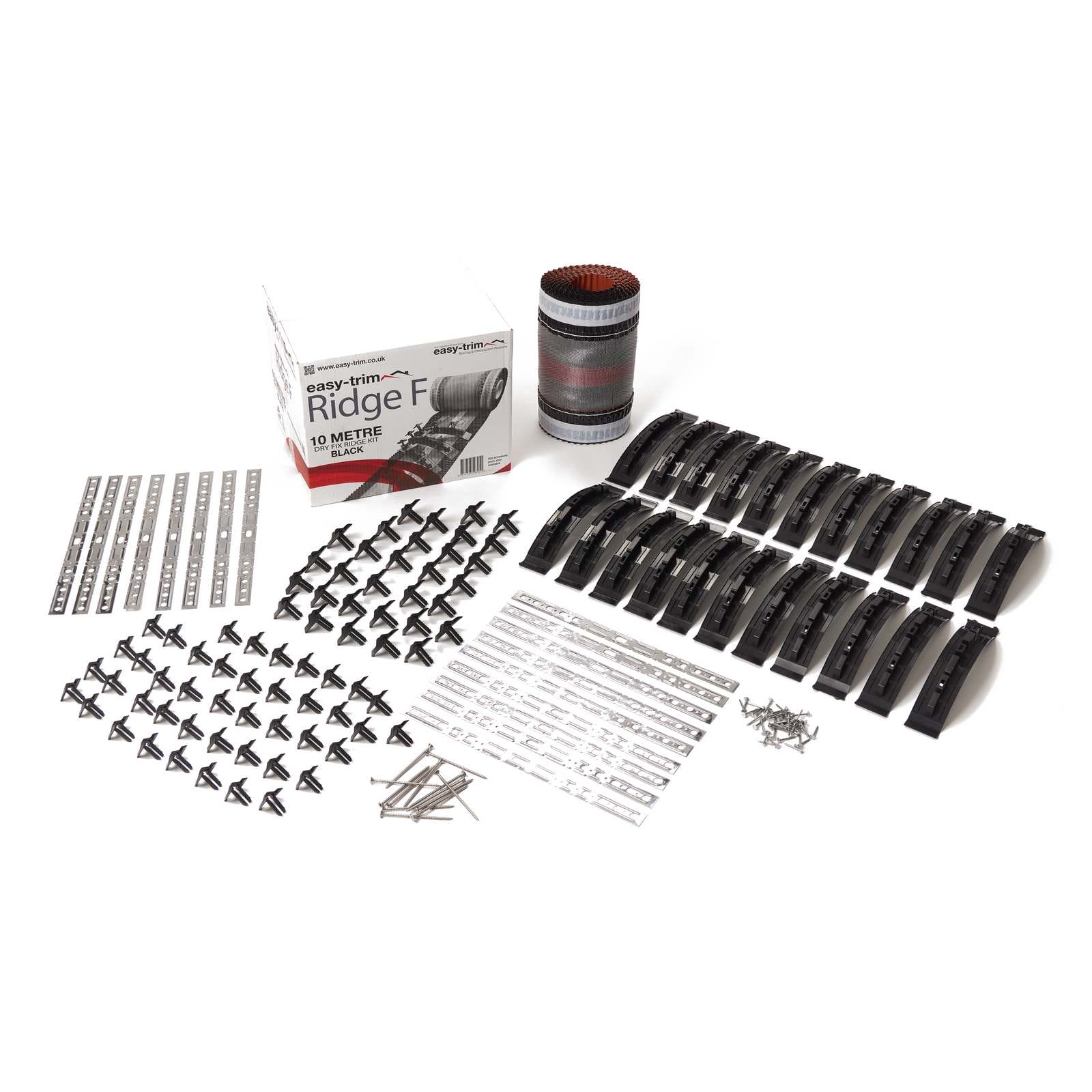

Ridge F Standard Kit

A dry fix ridge system involves fixing ridge and hip tiles to a roof, without mortar, but instead with polypropylene ratchet clips. These fix each ridge tile to the roof, with waterproof unions beneath the clips to divert water away from the join. A ridge roll is laid out along the ridge before the tiles are installed and this provides ventilation and forms a watertight roof ridge.

Specification

Material: polypropylene hydrophobic mesh ridge roll with corrugated aluminium and pumped butyl self-adhesive strip; stainless steel batten straps; film-grade polypropylene unions; glass-filled nylon ratchet clips. Roof pitch: 15°-45°. Ventilation: 5mm continuous ridge ventilation. Installation temperature: 5°C-35°C. Standards: BS 5534, BS 8612, BS 5250. 20-year guarantee on all components when installed to manufacturer guidelines.
